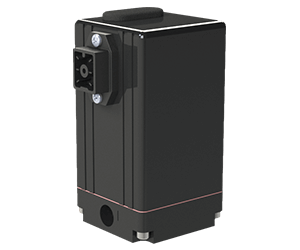

QBX

QBX

The QBX pressure control valve is a closed-loop electronic air pressure regulator designed to work in almost any environment. The QBX can be calibrated to any pressure range from full vacuum up to 175 PSI. This device can be configured to accept a variety of analog and digital command signals and it comes standard with an analog monitor out signal for data acquisition.

The QBX electronic pressure control valve may not be the lowest (upfront) cost option you have. However, the ruggedness and durability of the QBX makes it the lowest cost option in the long run, by far. Tested to almost 1 billion cycles, the QBX can last a very long time without the need for re-calibration and maintenance. Please note, proper understanding of the application is required to experience this type of longevity.

Request Quote

%

Accuracy ±

%

Repeatability ±

Max Flow (SCFM)

Max P2 (PSI)

QBX Downloads & Links
Documents Links Downloads
Installation Guide BB-Series – Legacy Product QBX_Schematic Symbol
Sales Brochure QBT-Series – Legacy Product File Request Form
QBX Downloads & Links
Documents
Installation Guide
Sales Brochure
Links
BB-Series – Legacy Product
QBT-Series – Legacy Product
Downloads
QBX_Schematic Symbol
File Request Form
QBX Technical Specifications
Pressure Range Accuracy Repeatability Max Flow
Vacuum thru 175 PSI (12 Bar) ±0.2% F.S. ±0.02% F.S. 1.2 SCFM (34 LPM)
Port Size Durability Operating Temps Filtration
1/8″ NPT (BSPP Available) Immune to shock & vibration (up to 20 Gs) 32-158°F (0-70°C) 40 Micron
Protection Rating
IP65
QBX Technical Specifications
Pressure Range
Vacuum thru 175 PSI (12 Bar)
Accuracy
±0.2% F.S.
Repeatability
±0.02% F.S.
Max Flow
1.2 SCFM (34 LPM)
Port Size
1/8″ NPT (BSPP Available)
Durability
Immune to shock & vibration (up to 20 Gs)
Operating Temps
32-158°F (0-70°C)
Protection Rating
IP65
Filtration
40 Micron

QB1X 3D STEP View & Download

QB1X | Internal Sense

Electronic Pressure Regulator

The QB1X is a complete closed-loop system consisting of valves, manifold, housing and electronic controls. Pressure is controlled by the use of two solenoid valves. One valve functions as inlet control, the other as exhaust. The pressure output is measured by a pressure transducer internal to the QB1X and provides a feedback signal to the electronic controls. This feedback signal is compared with the command signal input. A difference between the two signals causes one of the solenoid valves to open, allowing flow in or out of the system. Accurate pressure is maintained by controlling these two valves.

QB2X 3D STEP View & Downloads

QB2X | External Sense

Electronic Pressure Regulator

The QB2X is similar to the QB1X but uses a double-loop control scheme. In addition to the internal pressure transducer, the QB2X receives an electrical signal from an external sensing device. This primary feedback signal is compared against the command signal input. This comparison is then summed with the internal pressure transducer signal. The gain of the circuit is such that priority is given to the external feedback signal. A difference between the command signal and the feedback signal causes one of the solenoid valves to be activated.

QBX Electronic Pressure Control Valve Questions

What gases can the QBX control directly?
The QBX series can pilot various volume boosters to control a wide range of fluids and medias, indirectly. Learn more about QB2 Volume Air Booster.

These gases can be controlled directly with QBX series:

All noble gases, including: Helium, Neon, Argon, Krypton, Xenon, Radon

  • Carbon Dioxide
  • Compressed Air
  • Nitrogen
  • Nitrous Oxide
  • Oxygen – with O2 cleaned brass manifold option
What electronic (command) signals can the QBX be configured with?
The QBX controls air pressure in proportion to an electric command signal. QBX is available with these command options:

What electronic (monitor) output signals can the QBX be configured with?
The QBX series comes standard with a monitor output signal for simple data aqcuitision. The QBX is available with these monitor options:

  • No Monitor
  • 0 to 10 VDC
  • 0 to 5 VDC
  • 1 to 5 VDC
  • 4 to 20 mADC (sinking)
  • 4 to 20 mADC (sourcing)
What units of measure can the QBX be configured with?
The QBX full scale pressure range can be configured in any of the below units of measure:

  • PSI
  • Millibars
  • Bar
  • Kilo-pascal
  • Mega-pascal
  • Millimeters Hg
  • Pascal
  • Inches Hg
  • Inches of water column
  • Millimeters of water column
  • Centimeters of water column
  • Kilograms/cm2
  • Torr – Must be absolute reference unit
What pressure ranges is the QBX available in?
At Proportion-Air, we always build our products to whatever pressure range our customer needs. We do not offer “off-the-shelf” pre-set pressure ranges for the QBX. If you want your QBX setup for 0-175 PSI control, no problem. But if you want your QBX setup for 2.1 bar to 6.75 bar, no problem. There is no additional cost for custom calibrated pressure ranges.
What is the lowest (full scale) pressure the QBX can be calibrated to?
The lowest pressure the QBX can be calibrated to is: 0 to 2 Inches of water column. That is a full scale range of 0 PSI to 0.073 PSI with ±0.2% accuracy!
Can the QBX control vacuum?
Absolutely! The QBX series can be calibrated to control from atmosphere to full vacuum or vacuum through positive pressure in the same device.
> Consult factory for more information
QB1X Part Numbers

QB1XANAXZN1BRG QB1XANAXZP100PSG QB1XANAXZP100PSGFA QB1XANAXZP10BRG QB1XANAXZP12BRG QB1XANAXZP2BRG QB1XANAXZP500MWG QB1XANAXZP5PSG QB1XANBXZP30PSA QB1XANDCZP100PSGBF QB1XANDEZP0PSGBF QB1XANDEZP100PSGBF QB1XANDEZP100PSGBFTL QB1XANDEZP100PSGBFTT QB1XANDEZP125PSG QB1XANDEZP125PSGBF QB1XANDEZP25PSGBFTL QB1XANDEZP50PSG QB1XANDEZP50PSGBF QB1XANDEZP50PSGBFHQ QB1XANDEZP50PSGBFTL QB1XANDEZP50PSGBFTT QB1XANDEZP50PSGHQ QB1XANDEZP80PSG QB1XANDEZP80PSGBFTL QB1XANDEZP80PSGBFTT QB1XANDEZZPSGBF QB1XANDXZP50PSG QB1XANECZP100PSG5MBFTL QB1XANECZP100PSGTL QB1XANECZP120PSGV2X2 QB1XANECZP150PSG5MBFTL QB1XANECZP150PSG5MBFTT QB1XANECZP150PSGTL QB1XANEEP1P10BRA QB1XANEEP20P120PSGFA QB1XANEEZN170MBG QB1XANEEZN1BRGFAHQ QB1XANEEZN2IHGBFHQTL QB1XANEEZN600MBG QB1XANEEZP10.5BRGV3 QB1XANEEZP100KPG QB1XANEEZP100KPGFA QB1XANEEZP100PSD QB1XANEEZP100PSG QB1XANEEZP100PSG5F QB1XANEEZP100PSG5M QB1XANEEZP100PSG5MBF QB1XANEEZP100PSG5MBFTF QB1XANEEZP100PSG5MBFTL QB1XANEEZP100PSG5MBFTT QB1XANEEZP100PSG5MTL QB1XANEEZP100PSGBF QB1XANEEZP100PSGBFTL QB1XANEEZP100PSGDD QB1XANEEZP100PSGFA QB1XANEEZP100PSGFARR QB1XANEEZP100PSGHQ QB1XANEEZP100PSGM5 QB1XANEEZP100PSGTL QB1XANEEZP100PSGV2 QB1XANEEZP100PSGV3 QB1XANEEZP10BRA QB1XANEEZP10BRG QB1XANEEZP10BRGFA QB1XANEEZP10PSG QB1XANEEZP10PSGV1 QB1XANEEZP110PSG QB1XANEEZP111PSG QB1XANEEZP115CWG QB1XANEEZP115PSG5MBF QB1XANEEZP115PSG5MBFTL QB1XANEEZP120PAGBF QB1XANEEZP120PSG QB1XANEEZP120PSG5M QB1XANEEZP120PSGBF QB1XANEEZP120PSGV2X2 QB1XANEEZP125PSG QB1XANEEZP12BRG QB1XANEEZP140PSGHQ QB1XANEEZP14PSG5MBF QB1XANEEZP150PSG QB1XANEEZP150PSG5MBFTT QB1XANEEZP150PSGBFDD QB1XANEEZP150PSGBFHQ QB1XANEEZP150PSGDD QB1XANEEZP150PSGDDO3 QB1XANEEZP150PSGDVHI QB1XANEEZP150PSGHQ QB1XANEEZP150PSGHQVD QB1XANEEZP150PSGV5 QB1XANEEZP159PSG5MBF QB1XANEEZP159PSG5MBFTL QB1XANEEZP159PSG5MBFTT QB1XANEEZP159PSGTT QB1XANEEZP15IWG QB1XANEEZP15PSG QB1XANEEZP15PSG5MBFTT QB1XANEEZP175PSG QB1XANEEZP1BRG QB1XANEEZP1BRGFA QB1XANEEZP2.5IWG QB1XANEEZP2.5KPG QB1XANEEZP2.5PSG QB1XANEEZP20PSG QB1XANEEZP20PSG5MBF QB1XANEEZP20PSG5MBFTL QB1XANEEZP20PSG5MBFTT QB1XANEEZP20PSGHI QB1XANEEZP20PSGVD QB1XANEEZP210CWG QB1XANEEZP25CWG QB1XANEEZP280KPG QB1XANEEZP30PSA QB1XANEEZP30PSG QB1XANEEZP30PSG5MBFTLV1 QB1XANEEZP30PSG5MBFTT QB1XANEEZP30PSGHQV1 QB1XANEEZP38PSG QB1XANEEZP3PSG QB1XANEEZP45PSG QB1XANEEZP45PSGFA QB1XANEEZP45PSGFAV2 QB1XANEEZP45PSGFL QB1XANEEZP45PSGTFV2 QB1XANEEZP47PSG QB1XANEEZP4BRAHQ QB1XANEEZP4BRGV1 QB1XANEEZP4PSG QB1XANEEZP5.36BRGRR QB1XANEEZP50PSG QB1XANEEZP50PSG5MBF QB1XANEEZP50PSG5MBFTT QB1XANEEZP50PSGBF QB1XANEEZP50PSGBR QB1XANEEZP50PSGHQ QB1XANEEZP55PSG QB1XANEEZP5BRG QB1XANEEZP5PSG QB1XANEEZP5PSGVD QB1XANEEZP6.89BRGRR QB1XANEEZP60PSG QB1XANEEZP60PSG5MBF QB1XANEEZP60PSGDD QB1XANEEZP60PSGTVV2 QB1XANEEZP61.4PSG QB1XANEEZP63PSG QB1XANEEZP6BRG QB1XANEEZP6BRGHQ QB1XANEEZP6PSG5MBFTT QB1XANEEZP71.5PSGFARR QB1XANEEZP80PSG QB1XANEEZP80PSGHQ QB1XANEEZP80PSGM5 QB1XANEEZP80PSGTF QB1XANEEZP87PSG QB1XANEEZP87PSGDD QB1XANEEZP8BRG QB1XANEEZP8BRGBF QB1XANEEZP8BRGBFDD QB1XANEEZP8BRGDD QB1XANEEZP90PSG5MBFTL QB1XANEEZP90PSG5MBFTT QB1XANEEZP94PSGFARR QB1XANEEZP9BRG QB1XANEEZZPSGDVHQ QB1XANEKZP150PSGFL QB1XANEKZP150PSGFLP1 QB1XANEKZP175PSG QB1XANEKZP30PSGP1 QB1XANEKZZPSGP1 QB1XANEXN0P15PSG QB1XANEXP0P100PSG QB1XANEXP100ZPSG3MBF QB1XANEXP3P15PSG3MBF QB1XANEXP50ZPSG3MBF QB1XANEXP60ZPSG3M QB1XANEXZP100PSG QB1XANEXZP100PSG3FBFBRFA QB1XANEXZP100PSG3FFA QB1XANEXZP100PSG3M QB1XANEXZP100PSG3MBF QB1XANEXZP100PSG3MBFBRHQ QB1XANEXZP100PSG3MBFFA QB1XANEXZP100PSG3MBFFAM5 QB1XANEXZP100PSG3MBFFATL QB1XANEXZP100PSG3MBFFL QB1XANEXZP100PSG3MBFFLM5 QB1XANEXZP100PSG3MBFFLTL QB1XANEXZP100PSG3MBFHQ QB1XANEXZP100PSG3MBFLH QB1XANEXZP100PSG3MBFTL QB1XANEXZP100PSG3MFL QB1XANEXZP100PSG3MHQ QB1XANEXZP100PSG3MV2 QB1XANEXZP100PSG5MBFFAM5 QB1XANEXZP100PSG5MBFTT QB1XANEXZP100PSGFA QB1XANEXZP100PSGFL QB1XANEXZP100PSGHQ QB1XANEXZP10PSG QB1XANEXZP10PSG3MBF QB1XANEXZP120PSG3MBF QB1XANEXZP125PSG3M QB1XANEXZP125PSG3MBF QB1XANEXZP150PSG3MBFV3 QB1XANEXZP15PSG3MBF QB1XANEXZP20PSG QB1XANEXZP20PSG3MBF QB1XANEXZP20PSG3MBFTL QB1XANEXZP30PSG3MBF QB1XANEXZP30PSG3MBFFATLV1 QB1XANEXZP30PSG3MBFFAV1 QB1XANEXZP30PSG3MBFTL QB1XANEXZP30PSGFAV1 QB1XANEXZP50PSG3MBF QB1XANEXZP50PSG3MBFTL QB1XANEXZP55PSG QB1XANEXZP55PSG3MBF QB1XANEXZP55PSG3MBFTL QB1XANEXZP60PSG3M QB1XANEXZP60PSG3MBF QB1XANEXZP80PSG3MBFFA QB1XANEXZP80PSGBFDV QB1XANEXZP80PSGBFDVFL QB1XANICP3P15PSGR1 QB1XANICP6P30PSGHQ QB1XANICZP1.6BRA QB1XANICZP100PSG QB1XANICZP100PSG5MBF QB1XANICZP100PSG5MBFDCFATL QB1XANICZP100PSG5MBFFA QB1XANICZP100PSG5MBFFASETL QB1XANICZP100PSG5MBFFATL QB1XANICZP100PSG5MBFFATT QB1XANICZP10PSG QB1XANICZP145PSG QB1XANICZP150PSG QB1XANICZP280KPG QB1XANICZP30PSG5MBF QB1XANICZP35PSGV1 QB1XANICZP40PSGTT QB1XANICZP5PSG QB1XANICZP60PSG5MBFTL QB1XANICZP60PSG5MBFTT QB1XANICZP70PSGFL QB1XANICZP70PSGFLM5 QB1XANIEP3P15PSG QB1XANIEZP100PSG QB1XANIEZP100PSG5FBFFA QB1XANIEZP100PSG5M QB1XANIEZP100PSG5MBFFA QB1XANIEZP100PSG5MHQ QB1XANIEZP115PSAV2X2 QB1XANIEZP120PSGV2X2 QB1XANIEZP125PSG QB1XANIEZP130.5PSG QB1XANIEZP140PSG QB1XANIEZP165PSG QB1XANIEZP30PSG QB1XANIEZP3BRA QB1XANIEZP40PSG QB1XANIEZP50PSG QB1XANIEZP62.5PSG QB1XANIEZP65PSGFA QB1XANIEZP75PSG QB1XANIEZP90PSGV2 QB1XANIEZP95PSG QB1XANISP3P15PSG QB1XANISP3P15PSGFA QB1XANISP7P72PSGHQ QB1XANISZN100KPG QB1XANISZN14.7PSG QB1XANISZN1BRG QB1XANISZN30IHG QB1XANISZP1.5BRG QB1XANISZP100PSG QB1XANISZP100PSG5MBF QB1XANISZP100PSGBF QB1XANISZP100PSGBR QB1XANISZP100PSGFA QB1XANISZP100PSGFLM5 QB1XANISZP100PSGHQ QB1XANISZP102PSG QB1XANISZP10BRG QB1XANISZP10BRGFL QB1XANISZP120PSG QB1XANISZP120PSGV2 QB1XANISZP125PSG QB1XANISZP12BRG QB1XANISZP130PSG QB1XANISZP140PSGBF QB1XANISZP150MBGV1 QB1XANISZP150PSGBFHQ QB1XANISZP150PSGV2 QB1XANISZP175PSG QB1XANISZP1BRGBFV1 QB1XANISZP1BRGV2 QB1XANISZP20PSG QB1XANISZP2BRG QB1XANISZP3.5KGG QB1XANISZP30PSG QB1XANISZP30PSGV1 QB1XANISZP500MBGV2 QB1XANISZP50MBG QB1XANISZP50PSG QB1XANISZP60PSG QB1XANISZP6BRG QB1XANISZP6BRGDD QB1XANISZP6BRGHI QB1XANISZP80PSG QB1XANISZP80PSGHQ QB1XANISZP90PSG QB1XANISZP90PSGFAV2 QB1XANISZZPSGV2 QB1XANIXP20P120PSG3MBF QB1XANIXZP100PSG3MBF QB1XANIXZP100PSG3MBFFA QB1XANIXZP100PSG3MBFFL QB1XANIXZP100PSG3MBFSE QB1XANIXZP100PSG3MBFSETL QB1XANIXZP100PSG3MBFTL QB1XANIXZP100PSG3MTL QB1XANIXZP100PSG5MBFV3 QB1XANIXZP100PSGTL QB1XANIXZP100PSGV3 QB1XANIXZP10PSG3MBF QB1XANIXZP120PSG3MBF QB1XANIXZP125PSG QB1XANIXZP125PSG3MBF QB1XANIXZP125PSG3MBFSE QB1XANIXZP150PSG3MBF QB1XANIXZP150PSG3MBFSETL QB1XANIXZP150PSG3MBFTL QB1XANIXZP15PSG3MBF QB1XANIXZP20PSG3MBF QB1XANIXZP20PSG3MBFSE QB1XANIXZP20PSG3MBFV1 QB1XANIXZP20PSGV1 QB1XANIXZP30PSG3MBF QB1XANIXZP30PSG3MBFSE QB1XANIXZP40PSG3MBF QB1XANIXZP40PSG3MBFSE QB1XANIXZP40PSG3MBFV1 QB1XANIXZP4BRG QB1XANIXZP50PSG3MBFFASE QB1XANIXZP60PSG3MBF QB1XANIXZP60PSG3MBFSE QB1XANIXZP60PSG3MBFV1 QB1XANIXZP80PSG QB1XANIXZP80PSG3MBF QB1XANIXZP80PSG3MBFFA QB1XANIXZP80PSG3MBFSE QB1XANIXZP85PSG3MBFTL QB1XANKKN13P120PSG QB1XANKKN13P120PSGP1 QB1XANKKN14.7P100PSG QB1XANKKZN170MBGP1 QB1XANKKZN22IHG QB1XANKKZP0.1MPG QB1XANKKZP0.9MPGP1 QB1XANKKZP100PSG QB1XANKKZP150IWG5MBF QB1XANKKZP150IWG5MBFHQ QB1XANKKZP150IWGBFHQ QB1XANKKZP40PSG QB1XANKKZP50PSGP1 QB1XANKKZP50PSGP1V2 QB1XANKKZP5PSG5MBF QB1XANKKZP6BRGHQ QB1XANKKZP80PSG QB1XANKKZZPSGFA QB1XANKXP100ZPSG QB1XANKXP100ZPSG3M QB1XANKXP100ZPSG3MBF QB1XANKXP40P10PSG3M QB1XANKXP40P10PSG3MBF QB1XANKXP50P0PSG3MBF QB1XANKXP50ZPSG QB1XANKXP50ZPSG3FBF QB1XANKXP50ZPSG3MBF QB1XANKXP50ZPSGBF QB1XANLEZP100PSGBF QB1XANLEZP100PSGBFTL QB1XANNXP3P15PSGV1 QB1XANNXZN29.9IHG QB1XANNXZP100PSG QB1XANNXZP10PSG QB1XANNXZP120PSG QB1XANNXZP150PSG QB1XANNXZP15PSGV1 QB1XANNXZP26PSA QB1XANNXZP280KPG QB1XANNXZP30PSG QB1XANNXZP50PSG QB1XANNXZP5PSG QB1XANNXZP80PSG QB1XANPXZP100PSG QB1XANPXZP10BRG QB1XANPXZP175PSGHEVD QB1XANPXZP175PSGVD QB1XAPEEZP12BRG QB1XAPEEZP150PSG QB1XAPEEZP6BRG QB1XAPISZP6BRG QB1XBNEEZP100PSG QB1XBNEEZP100PSG5MO2TL QB1XBNEEZP125PSGO2 QB1XBNEEZP125PSGO2RR QB1XBNEEZP4BRGV1 QB1XBNEXZP100PSG3MBF QB1XBNIEZP0.5MPGO2 QB1XBNIKZP0.5MPGDDO2 QB1XBNIXZP20PSG QB1XBNNXZP6BRG

QB2X Part Numbers
QB2XANAXZN16IHG3DTF QB2XANAXZP15PSG3DTFV2 QB2XANAXZP15PSG3DV2 QB2XANAXZP16IHGTF QB2XANAXZP30PSG3DTFV2 QB2XANBXZP1.49BRG3DBFRRTF QB2XANBXZP3.6BRG3DBFRRTF QB2XANBXZP4.46BRG3DBFRRTF QB2XANBXZP6.1BRG3DBFRRTF QB2XANDCZP125PSG3DBF QB2XANDCZP125PSG3DBFTF QB2XANDEZP100PSG QB2XANDEZP100PSG3D QB2XANDEZP100PSG3DBF QB2XANDEZP100PSG3DBFTF QB2XANDEZP100PSG3DBFTFTT QB2XANDEZP100PSG3DBFTL QB2XANDEZP150PSG3DBFTF QB2XANDEZP150PSG3DTF QB2XANDEZP165PSG3DBFTF QB2XANDEZP170PSG3DBFTF QB2XANDEZP175PSG3DBFTF QB2XANDEZP175PSG3DBFUF QB2XANDEZP186PSG3DBFUF QB2XANDEZP30PSG3DBFTF QB2XANDEZP80PSG3D QB2XANEEN15P47KPG3D QB2XANEEN35N70KPG3D QB2XANEEN5P5PSG3DTF QB2XANEEP20P100PSG3D5MBF QB2XANEEP20P100PSG3D5MBFTL QB2XANEEP20P100PSG3D5MBFTT QB2XANEEZN100IWG3DTF QB2XANEEZN10IHG3DTF QB2XANEEZN10PSG3DTF QB2XANEEZN1BRG3DTF QB2XANEEZN200MBG3DTF QB2XANEEZN20IHG3DTF QB2XANEEZN24KPG3DTF QB2XANEEZN25IHG3DTF QB2XANEEZN28IHG3D QB2XANEEZN29.9IHG3DTF QB2XANEEZN300MBG3DTF QB2XANEEZN35KPG3D QB2XANEEZN500MBG3DTF QB2XANEEZN50KPG3DTF QB2XANEEZN60KPG3D QB2XANEEZN70KPG3D QB2XANEEZN8KPG3D QB2XANEEZP0.2BRG3D QB2XANEEZP1.5BRG3DTFV1 QB2XANEEZP1000MBA3DTF QB2XANEEZP1000MBG3D QB2XANEEZP100IWG3DTF QB2XANEEZP100MBG3DTF QB2XANEEZP100MBG3DTFVD QB2XANEEZP100PSA QB2XANEEZP100PSG QB2XANEEZP100PSG3D QB2XANEEZP100PSG3D5FBFTTV3 QB2XANEEZP100PSG3D5M QB2XANEEZP100PSG3D5MBF QB2XANEEZP100PSG3D5MBFTF QB2XANEEZP100PSG3D5MBFTFTL QB2XANEEZP100PSG3D5MBFTL QB2XANEEZP100PSG3D5MBFTT QB2XANEEZP100PSG3D5MTF QB2XANEEZP100PSG3DBFDDTT QB2XANEEZP100PSG3DBFDDV2 QB2XANEEZP100PSG3DBFTF QB2XANEEZP100PSG3DDD QB2XANEEZP100PSG3DFATF QB2XANEEZP100PSG3DFLTF QB2XANEEZP100PSG3DHEX3 QB2XANEEZP100PSG3DRRUF QB2XANEEZP100PSG3DTF QB2XANEEZP100PSG3DTFV2 QB2XANEEZP100PSG5MBF QB2XANEEZP100PSG5MBFTL QB2XANEEZP100PSG5MBFTT QB2XANEEZP100PSGM5 QB2XANEEZP100PSGTL QB2XANEEZP105PSG3DDD QB2XANEEZP107PSG3DRRTF QB2XANEEZP10BRG3D QB2XANEEZP10BRG3DTF QB2XANEEZP10IHG3DTF QB2XANEEZP10IWG3DTFV1 QB2XANEEZP10PSG QB2XANEEZP10PSG3D QB2XANEEZP10PSG3D5MBFHETL QB2XANEEZP10PSG3DDDTFV1 QB2XANEEZP10PSG3DFA QB2XANEEZP10PSG3DFLTF QB2XANEEZP10PSG3DTF QB2XANEEZP10PSG3DTFV1 QB2XANEEZP10PSG5MBFHE QB2XANEEZP10PSG5MBFHETT QB2XANEEZP110PSG3D5MBF QB2XANEEZP110PSG3D5MBFTT QB2XANEEZP110PSG3DTF QB2XANEEZP111.1PSG3DRR QB2XANEEZP113PSG3DRRTF QB2XANEEZP120PSG3D QB2XANEEZP120PSG3DBFFLTF QB2XANEEZP120PSG3DTF QB2XANEEZP125PSG3DBFDDTF QB2XANEEZP125PSG3DFLTF QB2XANEEZP125PSG3DTF QB2XANEEZP12BRG3DTF QB2XANEEZP12MBG3DTF QB2XANEEZP133.3PSG3DRR QB2XANEEZP133PSG3DRR QB2XANEEZP143PSG3D5MBF QB2XANEEZP143PSG3D5MBFTL QB2XANEEZP145PSG3DTF QB2XANEEZP150PSG QB2XANEEZP150PSG3D QB2XANEEZP150PSG3D5M QB2XANEEZP150PSG3D5MBF QB2XANEEZP150PSG3D5MBFTT QB2XANEEZP150PSG3DBF QB2XANEEZP150PSG3DBFDD QB2XANEEZP150PSG3DBFTF QB2XANEEZP150PSG3DDVHQ QB2XANEEZP150PSG3DTF QB2XANEEZP159PSG3D5MBFTL QB2XANEEZP15PSG3D QB2XANEEZP15PSGC2TF QB2XANEEZP175PSG3D QB2XANEEZP175PSG3DBFTF QB2XANEEZP175PSG3DDD QB2XANEEZP175PSG3DTF QB2XANEEZP1BRG3DTFV1 QB2XANEEZP1PSG3DDDLH QB2XANEEZP1PSG3DDDTF QB2XANEEZP1PSG3DLH QB2XANEEZP1PSG3DM5V1 QB2XANEEZP1PSG3DTF QB2XANEEZP2.5BRG3DRRTF QB2XANEEZP2.5PSG3D QB2XANEEZP2.5PSG3DTF QB2XANEEZP2.7BRG3DRRTF QB2XANEEZP2.7BRG3DTF QB2XANEEZP2.9BRG3DRR QB2XANEEZP2.9BRG3DRRTF QB2XANEEZP20IHG3DTF QB2XANEEZP20PSG3D QB2XANEEZP20PSG3DTF QB2XANEEZP2BRG3DTF QB2XANEEZP2KGG3D5MBF QB2XANEEZP3.33BRG3DRRTF QB2XANEEZP3.34BRG3DRRTF QB2XANEEZP3.3BRG3DRR QB2XANEEZP30MBG3DTF QB2XANEEZP30PSG3D QB2XANEEZP30PSG3D5MBF QB2XANEEZP30PSG3D5MBFTL QB2XANEEZP30PSG3D5MBFTLV1 QB2XANEEZP30PSG3D5MBFTT QB2XANEEZP30PSG3DDD QB2XANEEZP30PSG3DTF QB2XANEEZP30PSG5MBF QB2XANEEZP30PSG5MBFTLV1 QB2XANEEZP30PSG5MBFTT QB2XANEEZP31.25PSG3DRRTF QB2XANEEZP3BRG3DTF QB2XANEEZP3BRG3DTFV1 QB2XANEEZP4.4BRG3DRRTF QB2XANEEZP4.7BRG3DRR QB2XANEEZP400KPG3DBFTF QB2XANEEZP40PSG3D QB2XANEEZP40PSG3DTF QB2XANEEZP40PSGC2TF QB2XANEEZP43.75PSG3DRR QB2XANEEZP43.75PSG3DRRTF QB2XANEEZP43PSG3D5M QB2XANEEZP43PSG3D5MBFTL QB2XANEEZP44.5PSG3D QB2XANEEZP46.86PSG3DRR QB2XANEEZP46.88PSG3DRR QB2XANEEZP4BRG3DFLTF QB2XANEEZP4BRG3DRRTF QB2XANEEZP5.56BRG3DRRTF QB2XANEEZP5.8BRG3DRRTF QB2XANEEZP5.8BRG3DTF QB2XANEEZP500MBG3DTF QB2XANEEZP500MBG3DTFV1 QB2XANEEZP50KPG3D QB2XANEEZP50MBG3D QB2XANEEZP50PSG3DBFTF QB2XANEEZP50PSG3DRRTF QB2XANEEZP50PSGTF QB2XANEEZP53.5PSG3DRRTF QB2XANEEZP53.6PSG3DRRTF QB2XANEEZP54PSG3DRRTF QB2XANEEZP56PSG3D QB2XANEEZP57PSG3D5MBF QB2XANEEZP57PSG3D5MBFTL QB2XANEEZP57PSG3D5MBFTT QB2XANEEZP5IWG3D QB2XANEEZP5IWG3DLH QB2XANEEZP5IWG3DLHTF QB2XANEEZP5PSG3D QB2XANEEZP5PSG3DBF QB2XANEEZP5PSG3DBFM4UF QB2XANEEZP5PSG3DTF QB2XANEEZP5PSG3DV2 QB2XANEEZP6.06BRG3DBFRRTF QB2XANEEZP6.25BRG3DBFRRTF QB2XANEEZP6.67BRG3DRRTF QB2XANEEZP6.7BRG3DRR QB2XANEEZP60PSG QB2XANEEZP60PSG3D QB2XANEEZP60PSG3D5MBF QB2XANEEZP60PSG3D5MBFTL QB2XANEEZP60PSG3D5MBFTT QB2XANEEZP62.5PSG3DRR QB2XANEEZP62.5PSG3DRRTF QB2XANEEZP63PSG3DTF QB2XANEEZP65PSG3D QB2XANEEZP6BRG3DBFDDTF QB2XANEEZP6BRG3DBFTF QB2XANEEZP6BRG3DTF QB2XANEEZP7.25PSG3DTF QB2XANEEZP7.9BRG3DRRTF QB2XANEEZP70PSG3DRRTF QB2XANEEZP71.5PSG3D QB2XANEEZP72PSG3DRRTF QB2XANEEZP75PSG3D QB2XANEEZP75PSG3DRRTF QB2XANEEZP75PSG3DTF QB2XANEEZP79PSG3D QB2XANEEZP79PSG3DRR QB2XANEEZP7BRG3D QB2XANEEZP7BRG3D5MBF QB2XANEEZP7BRG3DBFTF QB2XANEEZP7PSG3DBFTF QB2XANEEZP80PSG3D QB2XANEEZP80PSG3D5MBF QB2XANEEZP80PSG3D5MBFTL QB2XANEEZP80PSG3D5MBFTT QB2XANEEZP80PSG3DTF QB2XANEEZP85PSG3DBFTF QB2XANEEZP88PSG QB2XANEEZP88PSG3DRRTF QB2XANEEZP8BRG3D QB2XANEEZP8BRG3DTF QB2XANEEZP90PSG3D QB2XANEEZP90PSG3DRR QB2XANEEZP93.8PSG3DRR QB2XANEEZP93.8PSG3DTF QB2XANEEZP94PSG3DRRTF QB2XANEEZZPSG3D5MBFTT QB2XANEKZP14.7PSA3DTF QB2XANESZP500MBG3DTF QB2XANEXZP100PSG3D3MBF QB2XANEXZP100PSG3D3MBFTF QB2XANEXZP100PSG3D3MBFTFTL QB2XANEXZP100PSG3D3MBFTL QB2XANEXZP10PSG3D3MBF QB2XANEXZP50PSG3D3MBFTL QB2XANICP10P60PSG3DTF QB2XANICP20ZPSGC2 QB2XANICZP10.3BRG3DDDTF QB2XANICZP100PSG QB2XANICZP100PSG3D QB2XANICZP100PSG3D5FBFSETTV3 QB2XANICZP100PSG3D5FBFSEV3 QB2XANICZP100PSG3D5FBFV3 QB2XANICZP100PSG3D5MBF QB2XANICZP100PSG3D5MBFSETL QB2XANICZP100PSG3D5MBFTL QB2XANICZP100PSG3D5MBFTLV3 QB2XANICZP100PSG3D5MBFTT QB2XANICZP100PSG3D5MBFV3 QB2XANICZP100PSG3D6R QB2XANICZP100PSG5MBF QB2XANICZP100PSG5MBFTF QB2XANICZP100PSG5MBFTL QB2XANICZP10PSG3D QB2XANICZP10PSG3D5M QB2XANICZP10PSG3D5MBF QB2XANICZP10PSG3DTF QB2XANICZP10PSG5M QB2XANICZP10PSG5MBF QB2XANICZP120PSG3DBFDD QB2XANICZP145PSG3DRRTF QB2XANICZP150PSG3D5MBF QB2XANICZP150PSG3DDDTF QB2XANICZP159PSG3D5MBFTT QB2XANICZP15PSG3DC2FATF QB2XANICZP15PSG3DFATF QB2XANICZP15PSG3DTF QB2XANICZP160MBG3D QB2XANICZP175PSG3D6U QB2XANICZP2.5BRG3DV1 QB2XANICZP2.8BRG3DBFTFV1 QB2XANICZP20PSG3DTFV1 QB2XANICZP26.4PSG3DRR QB2XANICZP26.4PSG3DRRTF QB2XANICZP2BRG3DTF QB2XANICZP3.28BRG3D QB2XANICZP30PSG3D5MBFLHV1 QB2XANICZP30PSG3D5MBFSEV1 QB2XANICZP30PSG5MBFLHSETT QB2XANICZP33PSG3D QB2XANICZP33PSG3D5MBFSETL QB2XANICZP33PSG3D5MBFVD QB2XANICZP33PSG3DVD QB2XANICZP35PSG3DTFV1 QB2XANICZP37.5PSG3DTFV1 QB2XANICZP40PSG3DTFV1 QB2XANICZP50PSG3D5MBF QB2XANICZP50PSG3DHQTF QB2XANICZP50PSG3DTF QB2XANICZP55.6PSG3DRR QB2XANICZP67PSG3DRRTF QB2XANICZP67PSG3DTF QB2XANICZP6BRG3D5MBFSETL QB2XANICZP75PSG3D5MBF QB2XANICZP80PSG3DTF QB2XANICZP85PSG3D5MBF QB2XANICZP85PSG3D5MBFTL QB2XANICZP85PSG3D5MBFTT QB2XANICZP93.8PSG3DRR QB2XANIEZP100PSG3D QB2XANIEZP100PSG3DSETF QB2XANIEZP100PSG3DTF QB2XANIEZP3BRA3D QB2XANIEZP3BRA3DTF QB2XANIEZP43PSG3D5MBFTL QB2XANIEZP7BRG3DTF QB2XANIEZP80PSG3D QB2XANISN0P100PSG3D5MBF QB2XANISN14.7ZPSG3DTF QB2XANISN1P1BRG3DTF QB2XANISP10P60PSG3DTF QB2XANISP80ZPSG3DC2FAV1 QB2XANISP80ZPSG3DC2FAV2 QB2XANISP80ZPSG3DFAV1 QB2XANISP8P80PSG3DC2FA QB2XANISP8P80PSG3DC2FAHQ QB2XANISZN100IWG3DTF QB2XANISZN14.7PSG3DTF QB2XANISZN29IHG3DFATF QB2XANISZN29IHG3DTF QB2XANISZN50IWG3DTF QB2XANISZP1.5BRG3DTF QB2XANISZP10.3BRG3DDDTF QB2XANISZP10.63PSG3DTF QB2XANISZP1000MBA3DTF QB2XANISZP100KPG3DTF QB2XANISZP100MBA3DBFTF QB2XANISZP100PSG QB2XANISZP100PSG3D QB2XANISZP100PSG3D5MBFTT QB2XANISZP100PSG3DBFFLTF QB2XANISZP100PSG3DC2HQ QB2XANISZP100PSG3DFLTF QB2XANISZP100PSG3DHQ QB2XANISZP100PSG3DHQTF QB2XANISZP100PSG3DTF QB2XANISZP100PSG3DV2 QB2XANISZP100PSGC2 QB2XANISZP100PSGC2TF QB2XANISZP100PSGFLTF QB2XANISZP100PSGHQ QB2XANISZP10BRG3D QB2XANISZP10BRG3DC2TF QB2XANISZP10BRG3DFATF QB2XANISZP10BRG3DFLTF QB2XANISZP10BRG3DTF QB2XANISZP110PSG3DR1TFV2 QB2XANISZP115.4PSG3DRRTF QB2XANISZP120PSG3D QB2XANISZP120PSG3DBF QB2XANISZP120PSG3DBFFLTF QB2XANISZP120PSG3DBFTF QB2XANISZP125PSG3DTF QB2XANISZP145PSG3DBFFLTF QB2XANISZP145PSG3DBFFLTFTT QB2XANISZP145PSG3DFLTF QB2XANISZP1BRA3DTF QB2XANISZP1BRG3DLQM5TF QB2XANISZP1BRG3DM5TF QB2XANISZP1BRG3DRRTF QB2XANISZP1BRG3DTF QB2XANISZP1KGG3DTF QB2XANISZP2.7BRG3DRRTF QB2XANISZP2000MBA3DTF QB2XANISZP20PSA3DFLTF QB2XANISZP20PSG3DTF QB2XANISZP20PSG3DTFV2 QB2XANISZP25PSA3DTF QB2XANISZP2IWG3DTF QB2XANISZP3.2BRG3DRRTF QB2XANISZP3.33BRG3DRR QB2XANISZP3.33BRG3DRRTF QB2XANISZP3.33BRG3DTF QB2XANISZP3.78BRG3DRRTF QB2XANISZP3.8BRG3DRR QB2XANISZP30PSG QB2XANISZP30PSG3D QB2XANISZP30PSG3D5MBFTL QB2XANISZP30PSG3DTF QB2XANISZP30PSG3DTFV1 QB2XANISZP30PSG3DV1 QB2XANISZP32PSG3DRR QB2XANISZP37.5PSG3DTF QB2XANISZP38PSG3DRRTF QB2XANISZP3PSG3DBFTF QB2XANISZP3PSG3DTF QB2XANISZP3PSG3DV1 QB2XANISZP4.3BRG3DRRTF QB2XANISZP4.44BRG3DBFRRTF QB2XANISZP4.44BRG3DRRTF QB2XANISZP4.9BRG3DRRTF QB2XANISZP45PSG3DNCTFV2 QB2XANISZP4BRG3DFLTF QB2XANISZP4BRG3DTF QB2XANISZP5.4BRG3DTF QB2XANISZP500MBA3DBFTF QB2XANISZP500MBG3DTF QB2XANISZP500MBG3DTFV1 QB2XANISZP50KPG3DTF QB2XANISZP50KPG3DTFV1 QB2XANISZP50KPG3DTFV2 QB2XANISZP50MBG3DTF QB2XANISZP50PSG3DRRTF QB2XANISZP50PSG3DTF QB2XANISZP50PSG3DTFV1 QB2XANISZP53.6PSG3DRRTF QB2XANISZP55.6PSG3DRR QB2XANISZP55PSG3DFATF QB2XANISZP5BRG3DTF QB2XANISZP5PSG3DTFV1 QB2XANISZP6.5BRG3DFLTF QB2XANISZP6.5PSG3DTFV1 QB2XANISZP6.67BRG3DRRTF QB2XANISZP6.7BRG3D QB2XANISZP6BRG3DFLTF QB2XANISZP6BRG3DTFV2 QB2XANISZP7.5BRG3DTF QB2XANISZP70PSG3DRRTF QB2XANISZP71.5PSG3DRRTF QB2XANISZP7BRG3DTF QB2XANISZP8.9BRG3DRRTF QB2XANISZP8BRG3DTF QB2XANIXZP100PSG3D3MBF QB2XANIXZP100PSG3D3MBFFA QB2XANIXZP100PSG3D3MBFFASE QB2XANIXZP100PSG3D3MBFTF QB2XANIXZP100PSG3D5MBF QB2XANIXZP100PSG3D5MBFFA QB2XANIXZP100PSG3DBFFA QB2XANIXZP100PSG3MBFFASE QB2XANIXZP125PSG3D3MBF QB2XANIXZP125PSG3D3MBFTF QB2XANIXZP50PSG3D5MBFFA QB2XANKEZP100PSGM5 QB2XANKKZN700MHG3D QB2XANKKZP100PSG3DTF QB2XANKKZP1PSG3DLH QB2XANKKZP30MHG3DLH QB2XANKKZP30PSG3D QB2XANKKZP30PSG3DTF QB2XANKKZP63PSG3DRRTF QB2XANKKZP94PSG3DTF QB2XANLCZP100PSG3DBFTL QB2XANLEZP50PSG3DBFTT QB2XANLXZP100PSG3DBF QB2XANMXZP100PSG3DTF QB2XANNXZN1000MBG3DTF QB2XANNXZN15IHG QB2XANNXZN340IWG3DTF QB2XANNXZP100PAG3DFATF QB2XANNXZP100PSG3DFATF QB2XANNXZP100PSG3DTF QB2XANNXZP120PSG3D QB2XANNXZP150PSG3DBFTF QB2XANNXZP15PSG3DTF QB2XANNXZP6.7BRG3DRR QB2XANPXN5P5PSG3DTF QB2XANPXZP10BRG3DTF QB2XAPEEZP150PSG3D QB2XBNDEZP100PSG3DBFO2TL QB2XBNDEZP100PSG3DBFO2TT QB2XBNDEZP100PSG3DBFTL QB2XBNDEZP100PSGO2 QB2XBNEEZP100PSG3D QB2XBNEEZP105PSG3DDD QB2XBNEEZP120PSG3DO2TF QB2XBNEEZP122.13PSG3D QB2XBNEEZP123.18PSG3D QB2XBNEEZP123.21PSG3D QB2XBNEEZP12MBG3DTF QB2XBNEEZP135.39PSG3D QB2XBNEEZP137.73PSG3D QB2XBNEEZP147.26PSG3D QB2XBNEEZP152.27PSG3D QB2XBNEEZP162.45PSG3D QB2XBNEEZP17PSG3D QB2XBNEEZP30PSG3D5MBFTL QB2XBNEEZP30PSG3D5MBFTT QB2XBNEEZP56.3PSG3D QB2XBNEEZP76PSG QB2XBNEEZP87PSG3D QB2XBNEEZP88.11PSG QB2XBNEEZP88.12PSG QB2XBNEEZP88.13PSG QB2XBNEEZP88.14PSG QB2XBNEEZP88.15PSG QB2XBNEEZP88.16PSG QB2XBNEEZP88.17PSG QB2XBNEEZP88.18PSG QB2XBNEEZP88.1PAG3D QB2XBNEEZP88.1PSG QB2XBNEEZP88.23PSG3D QB2XBNEEZP88.26PSG3D QB2XBNEEZP88.2PSG QB2XBNEEZP88.4PSG QB2XBNEEZP88PSG QB2XBNEEZP98.12PSG3D QB2XBNISZP30PSG3D
