Saturated Steam Control Valves

Controlling the temperature of saturated steam does not have to be complicated. With the acquisition of the Burling Valve steam regulator brand, Proportion-Air secured an excellent opportunity to help improve how the manufacturing industry controls the temperature of saturated steam. Control valves will always have a place in manufacturing, but steam regulators are the future of saturated steam control valves.

The Proportion-Air saturated steam control valves and regulators control pressure. Since the pressure of saturated steam is directly related to its temperature…we simply control temperature.

Request Quote

Advantages of Steam Regulators over Traditional Control Valves

Saturated Steam Control Valves - LESS EXPENSIVE

Less Expensive

Initial & lifetime cost is (generally) less with steam regulators compared to traditional control valves.

Saturated Steam Control Valves - LESS MAINTENANCE

Less Maintenance

The Easy in-line maintenance of the Burling Valve steam regulator requires much less downtime.

Saturated Steam Control Valves - ON-BOARD PID

On-Board PID

No PID tuning required (with electronic control option). Command to pressure & temp. is achieved.

Saturated Steam Control Valves - BETTER CONTROL

Better Control

Steam regulators are much quicker to temperature and much more stable during your process.

Saturated Steam Control Valves - LESS EXPENSIVE

Less Expensive

Initial & lifetime cost is (generally) less with steam regulators compared to traditional control valves.

Saturated Steam Control Valves - ON-BOARD PID

On-Board PID

No PID tuning required (with electronic control option). Command to pressure & temp. is achieved.

Saturated Steam Control Valves - LESS MAINTENANCE

Less Maintenance

The Easy in-line maintenance of the Burling Valve steam regulator requires much less downtime.

Saturated Steam Control Valves - BETTER CONTROL

Better Control

Steam regulators are much quicker to temperature and much more stable during your process.

Advantages of Steam Regulators over Traditional Control Valves

Time for a Change

For decades, controlling the temperature of saturated steam has been complicated, expensive and extremely inefficient. Imagine if your saturated steam control valves could:

  • Achieve temperature 75% faster
  • Be more accurate and stable during your process
  • Easily be repaired without removing the valve from the line – in just a couple hours
  • Be installed and controlled without requiring complicated PID tuning

How does Proportion-Air & Burling Valve improve your steam control process?

  • It’s simple: We work with physics instead of working around it. We control the pressure of saturated steam because the pressure of saturated steam is directly related (predictable & repeatable) to the temperature of saturated steam.

Video: Larry Brown discusses steam temperature control

Traditional Method

Saturated Steam Control Valves - TRADITIONAL METHOD

Temperature achieved in 45 minutes

Saturated Steam Control Valves - TEMP DITHERING

Preferred Method

Saturated Steam Control Valves - PREFERRED METHOD

Temperature achieved in 10 minutes

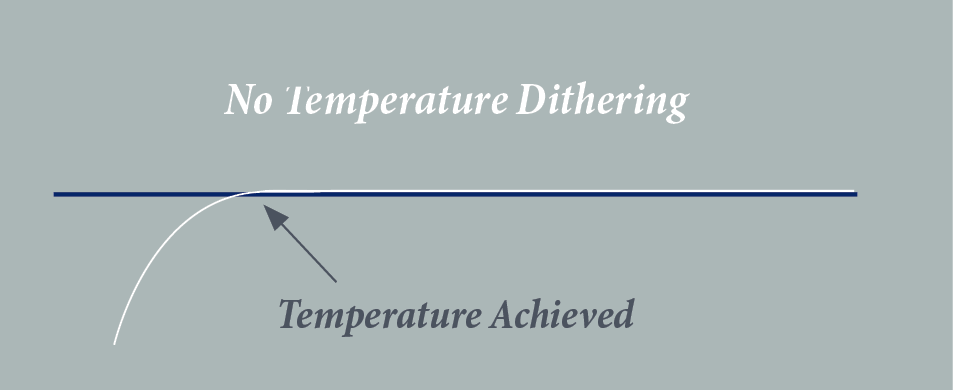

Saturated Steam Control Valves - NO DITHERING

The Proportion-Air & Burling Valve steam regulators are available in a variety of mechanical and electronic control types and configurations

Pressures

up to 400 PSI (28 Bar)

Body Sizes

1/2″ to 4″ with the option of 6″ & 8″ Flanges

Temperatures

up to 450°F (232°C)

Mechanical Control Types & Configurations

Saturated Steam Control Valves

PABS-1 Series

Direct Operated (Spring)

Internally or Externally Sensed

Accuracy: ± 7 PSI

Saturated Steam Control Valves

PABD-3 Series

Dome-Loaded with Manual Air Pilot

Internally or Externally Sensed

Accuracy: ± 1-2 PSI

Saturated Steam Control Valves

PABD-7 Series

Dome-Loaded with Steam Pilot

Accuracy: ± 0.1 to 0.2 PSI

Electrical Control Types & Configurations

Saturated Steam Control Valves

PABD-4 Series

In single-loop configuration, the electronic pilot controls pressure to the dome of the PABD steam regulator. As the diaphragm forces equal out, the pressure in the main line is controlled.

However, the electronic controller does not know the pressure in the main line and cannot adjust to leaks, backpressure and mechanical deficiencies.

Accuracy: ± 2-4%

Saturated Steam Control Valves

PABD-4 Series

With dual-loop control, the electronic pilot controls pressure to the dome of the PABD steam regulator. As the diaphragm forces equal out, the pressure in the main line is controlled.

But, instead of sensing pressure in the dome, a 2nd-loop is added that senses pressure in the main line and allows the electronic regulator to compensate for leaks, backpressure and any mechanical deficiencies.

Accuracy: ± 0.5%

Easy In-Line Maintenance

All of the internal components can be easily replaced without removing the valve from the pipeline. This allows for much greater online productivity.

  • Top Entry
  • Quick-Change Trim
  • No Disturbing the Pipline

Download Steam Brochure



Saturated Steam Control Valves
Saturated Steam Control Valves
REQUEST QUOTE

Most quotes within 6 hours of understanding your needs
